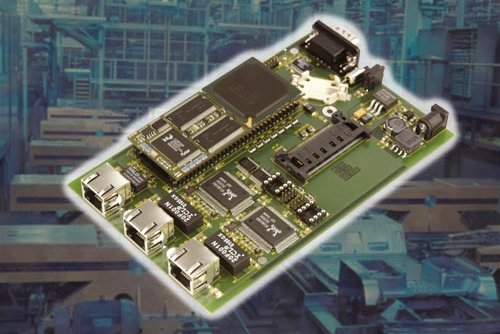

DIL/NetPC ADNP/1520 Application Board MB/1520-100 with 3 Ethernet LAN Ports

The DIL/NetPC Application Board MB/1520-100 is a platform for Firewalls and VPNs (Virtual Private Network) gateways. This board comes with 3 Ethernet LAN ports, one RS232 interface and a CompactFlash socket for CF cards with True IDE Mode. The DIL/NetPC Application Board MB/1520-100 can protect TCP/IP-based networks with embedded systems against attacks.


The DIL/NetPC Application Board MB/1520-100 offers a RS232-based Linux serial console. Linux support for a serial console is a very useful feature. It implements a simple command line interface (CLI) and allows running a embedded Linux system in a headless configuration without a monitor or keyboard.

DIL/NetPC ADNP/1520-3V Application Board MB/1520-100 Key Features

The DIL/NetPC Application Board MB/1520-100 comes with a DIL/NetPC ADNP/1520. This DIL/NetPC offers a AMD 32-bit SC520 low power IA-32 586 CPU with 133 MHz clock speed and 64 MBytes SDRAM and 16 MBytes Flash memory.

  • DIL/NetPC ADNP/1520-3V with 133 MHz. 16 MBytes Flash, 64 MBytes SDRAM
  • Programmable Watchdog (System Supervisor)
  • GNU GRUB Boot Loader
  • Embedded Gateway Linux
  • 1 * 10/100 Mbps Ethernet LAN Interface (LAN1: RJ45)
  • 2 * 10 Mbps Ethernet LAN Interface (LAN2, LAN3: RJ45)
  • RS232 Interface for Linux Serial Console (Sub-D, 9-pin Connector)
  • CompactFlash Slot for CF Cards with True IDE Mode
  • Reset Switch
  • 3,3 Volt Low Power Design
  • Power Supply with simple 5 VDC Wall-Plug Type
  • Board Dimension 100mm * 160mm

DIL/NetPC ADNP/1520-3V Application Board MB/1520-100 Ordering Information

Ordercode Product
MB/1520-100 Carrier Board MB/100 with ADNP1520-3V-133.
MB/1520-100-SK1 Carrier Board MB/100 with ADNP1520-3V-133, Power Supply, CD-ROM and Null-Modemcable.
