DIL/NetPC DNP/2110: Starter Kit SK17

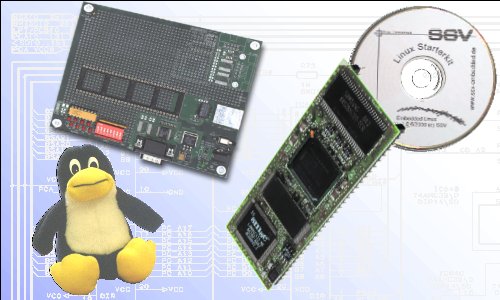

The DIL/NetPC DNP/2110 starter kit is everything you need to get started with your high-speed Xscale-based embedded networking application.The starter kit includes a DNP/2110 module with a pre-installed embedded Linux, the evaluation board DNP/EVA2 (special version - without the ST16C2550 dual UART and the UART support chips), power supply, serial interface (nullmodem) cable, one CD-ROM with software and documentation and a printed user manual for the first steps with the starter kit.

The starter kit CD-ROM comes with a full GNU cross tool chain for C/C++ software development. This binary files of the tool chain runs on a x86 Linux-based host (SuSE, Red Hat or other) and builds ELF binary files for the Intel Xscale PXA255 32-bit RISC microcontroller. For using the DIL/NetPC DNP/2110 starter kit you need a development system. The minimal configuration for this system is a Windows-based PC with the HyperTerminal terminal emulation program and a free COM port (COM1 or COM2) for the serial link between the DIL/NetPC DNP/2110 and HyperTerminal. For using the Ethernet link, your PC needs an Ethernet adapter with 10BASE-T or 10BASE-T/100BASE-TX interface. This environment allows web server Java applet programming and Linux shell script programming. For using the GNU C/C++ tool chain, it is necessary to run Linux on the development system.

DIL/NetPC DNP/2110: Starter Kit Key Features

The DIL/NetPC DNP/2110 pre-installed embedded Linux consists of two main components: 1. the Linux kernel and 2. the root filesystem. The DNP/2110 FLASH offers also the U-Boot Boot Loader for downloading new Versions of the Linux kernel and the root file system. This in-system programming feature can be used over a simple RS232 serial and TFTP-based Ethernet LAN link between the development system and the DNP/2110.

DIL/NetPC DNP/2110 with Intel 400 MHz PXA255 and 16 Mbytes FLASH/SDRAM, 3.3 VDC Vcc

U-Boot Boot Loader and Embedded Linux pre-installed in FLASH

Evaluation Board DNP/EVA2-SV (Special Version)

Nullmodem Cable

110 VAC or 230 VAC to 5 VDC International Power Supply

CD-ROM with User Manual and Hardware/Programmers Manuals

Embedded Linux with Source

GNU Cross Tool Chain for C/C++ Software Development

Linux Remote Login with Telnet

Web Server Setup Sample

FTP Server Setup Sample

Many Sourcecode Samples

DIL/NetPC DNP/2110: Starter Kit Ordering Information

Ordercode	Product
DNP/SK17	Starterkit with DNP/2110-D32C, DNP/EVA2-SV1, CD-ROM and Null-Modemcable.
