SBCs for Embedded Networking: DIL/NetPC DNP/5282

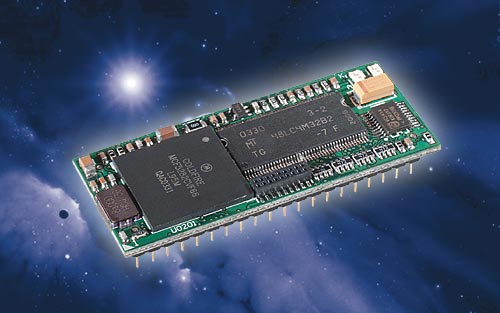

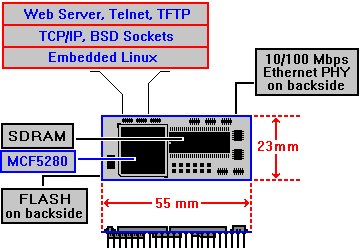

The DIL/NetPC DNP/5282 provides a very compact ColdFire-based low power embedded controller (Motorola/Freescale 32-bit MCF528x) with full-featured TCP/IP stack and web server for high-speed embedded networking applications. The DNP/5282 offers the footprint of a standard small 40-pin DIL socket with 2.54mm centers and all the hardware and software features necessary to add high-speed networking capabilities to any product design. The DNP/5282 is developed specifically for products that need to be connected to 10 or 100 Mbps Ethernet-based TCP/IP networks with minimum development costs.

DIL/NetPC DNP/5282

The DNP/5282 is a ready-to-run full programmable 32-bit embedded networking system. The use of the DNP/5282 will allow you to realize substantial time and costs savings over other chip-based approaches. Currently, there is no other 10/100 Mbps Ethernet- and full-featured TCP/IP-based embedded networking solution with more development time savings on the market. There is also no faster Time-to-Market for your product with lower costs if 32-bit-based 10/100 Mbps Ethernet, full TCP/IP and an embedded Web server or other TCP/IP-based server software is required.

DIL/NetPC

To interface the DNP/5282 with existing devices and equipment, the DNP/5282 offers two asynchronous serial RS232C interfaces with TTL levels (one with all handshake signals), one I2C interchip bus interface, one queued SPI (Serial Peripheral Interface) with two chip select outputs, one CAN interface with support for the CAN protocol specification 2.0B, and 20-bit general purpose high-speed parallel I/Os. There are two ways for the DNP/5282 system integration: 1. Adapt the DNP/5282 to your existing product. Use the existing I/Os within your product to communicate with the DNP/5282. 2. Use the DNP/5282 to control and monitor the hardware of your existing product. This might enable you to replace your existing controller entirely. In a new product design, the DNP/5282 can be the main controller. Additional I/Os are driven by I2C or SPI.

The on-board FLASH memory provides storage for the DNP/5282 operating system with a full-featured TCP/IP stack and embedded web server as well as OEM applications and data. The FLASH memory is in-system programmable over Motorola BDM, serial and the Ethernet interface. The boot block of the FLASH memory is only in-system programmable over the Motorola BDM interface through a special adapter cable attached to a PC parallel port. For all other FLASH blocks, you can use also a high-speed serial connection through the DNP/5282 COM1 port or the 10/100 Mbps Ethernet interface for in-system programming. The DNP/5282 in-system programming was developed for OEM application software, operating system downloads and data download and to make it easier to update the on-board FLASH content in the field.

DIL/NetPC DNP/5282: Key Features

  • Motorola 32-bit MCF528x ColdFire with 66 MHz Clock Speed
  • 63 MIPS (Dhrystone 2.1)
  • 16 MByte SDRAM Memory, 8 MByte FLASH Memory
  • 10/100 Mbps Ethernet LAN Interface
  • Two Ethernet LAN Status LEDs
  • Two asynchronous Serial Ports (one with all Handshakes)
  • One I2C Interchip Bus Interface
  • One Queued Serial Peripheral Interface (SPI) with two Chip Select Outputs
  • One CAN Interface (Supports CAN Protocol Specification 2.0B)
  • 20-bit General Purpose high-speed Parallel I/O
  • Programmable General Purpose Timers and Watchdog Timer
  • Motorola BDM (Background Debug Mode) Interface for In-Circuit Debugging
  • In-System Programming Features
  • Software compatible with DNP/5280 and PNP/5280
  • 40-pin JEDEC DIL Connector, 2.54mm Centers
  • 3.3 Volt Low Power Design, Supply Voltage 3.3 VDC (+- 5%)
  • Supply Current 300 mA typ. at 66 MHz
  • Size 55mm * 23mm

DIL/NetPC DNP/5282: Ordering Information

Ordercode Product
DNP/5282-E DNP/5282 with pre-installed RedBoot boot loader (ready for eCos-based applications)
DNP/5282-L DNP/5282 with pre-installed dBUG boot loader and embedded Linux O/S
