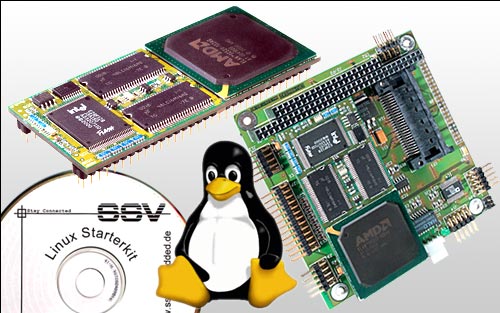

The DIL/NetPC ADNP/1520-3V starter kit SK11 is everything you need to get startet with your DIL/NetPC embedded networking application. The starter kit includes a ADNP/1520-3V module with 64 Mbyte SDRAM and 16 MByte FLASH, the PC/104-based application board CP/486SX-SV4 with one CompactFlash slot and one SJA1000 CAN controller, external power supply, serial interface (nullmodem) cable, two embedded operating systems, one CD-ROM with software and documentation and a user manual for the first steps with the starter kit.
For using the DIL/NetPC ADNP/1520-3V starter kit youd need a development system. The minimal configuration for this system is a Windows-based PC with the HyperTerminal terminal emulation program and a free COM port (COM1 or COM2) for the serial link between the DIL/NetPC ADNP/1520-3V and HyperTerminal program. For using the Ethernet link, your PC needs an Ethernet adapter with 10BASE-T or 100BASE-TX LAN interface.
DIL/NetPC ADNP/1520-3V: Starter Kit Key Features
The DIL/NetPC ADNP/1520-3V starter kit CD-ROM offers two different operating systems: 1. Datalight ROM-DOS 6.22 (which is also pre-installed to the ADNP/1520-3V FLASH), 2. a Embedded Linux based on a standard x86 kernel. You will find the Linux in binary and in source code form on the CD-ROM. The binary is ready to run. Just download the binary file from the CD-ROM to the DIL/NetPC FLASH memory and then booting up the Embedded Linux. Thatīs all.
DIL/NetPC ADNP/1520-3V: Starter Kit Ordering Information
