DIL/NetPC DNP/9200: Starter Kit SK23

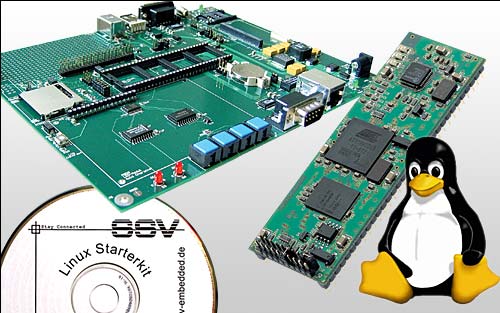

The DIL/NetPC DNP/9200 starter kit is everything you need to get started with your AT91RM9200 ARM9-based embedded Ethernet/USB networking application. The starter kit includes a DNP/9200 module with a pre-installed embedded Linux, the evaluation board DNP/EVA9, power supply, serial interface (nullmodem) cable, one CD-ROM with software and documentation and a printed user manual for the first steps with the starter kit.


The starter kit CD-ROM comes with a full GNU cross tool chain for C/C++ software development. This binary files of the tool chain runs on a x86 Linux-based host (SuSE, Red Hat or other) and builds ELF binary files for the AT91RM9200 ARM9 32-bit RISC microcontroller. For using the DIL/NetPC DNP/9200 starter kit you need a development system. The minimal configuration for this system is a Windows-based PC with the HyperTerminal terminal emulation program and a free COM port (COM1 or COM2) for the serial link between the DIL/NetPC DNP/9200 and HyperTerminal. For using the Ethernet link, your PC needs an Ethernet adapter with 10BASE-T or 10BASE-T/100BASE-TX interface. This environment allows web server Java applet programming and Linux shell script programming. For using the GNU C/C++ tool chain, it is necessary to run Linux on the development system.

DIL/NetPC DNP/9200: Starter Kit Key Features

The DIL/NetPC DNP/9200 pre-installed embedded Linux consists of two main components: 1. the Linux kernel and 2. the root filesystem. The DNP/9200 FLASH offers also the U-Boot Boot Loader for downloading new Versions of the Linux kernel and the root file system. This in-system programming feature can be used over a simple RS232 serial and TFTP-based Ethernet LAN link between the development system and the DNP/9200.

  • DIL/NetPC DNP/9200 with 180 MHz AT91RM9200 and 16 Mbytes FLASH / 32 Mbytes SDRAM, 3.3 VDC Vcc
  • U-Boot Boot Loader and Embedded Linux pre-installed in FLASH
  • Evaluation Board DNP/EVA9
  • Nullmodem Cable
  • 110 VAC or 230 VAC to 5 VDC International Power Supply
  • CD-ROM with User Manual and Hardware/Programmers Manuals
  • Embedded Linux with Source
  • GNU Cross Tool Chain for C/C++ Software Development
  • Linux Remote Login with Telnet
  • Web Server Setup Sample
  • FTP Server Setup Sample
  • Pre-installed GSM/GPRS Modem (Option - see Ordercode)
  • Many Sourcecode Samples

The DIL/NetPC DNP/9200 starter kit is also with a pre-installed GSM/GPRS modem available (please see ordering information). This modem allows a wireless connection to the Internet. GPRS stands for General Packet Radio Service. GPRS is a TCP/IP-based mobile data service available to users of GSM (Global System for Mobile Communications) mobile phones or GSM-based modems. Just insert a simple SIM card supplied by your mobile phone network provider. Anything else comes with the DIL/NetPC DNP/9200 starter kit.

DIL/NetPC DNP/9200: Starter Kit Ordering Information

Ordercode Product
DNP/SK23 Starterkit with DNP/9200, DNP/EVA9, CD-ROM and Null-Modemcable.
DNP/SK23-GSM1 Starterkit with DNP/9200, DNP/EVA9 with pre-installed GSM/GPRS modem, CD-ROM and Null-Modemcable.
