DIL/NetPC ADNP/1520-3V: Starter Kit SK18

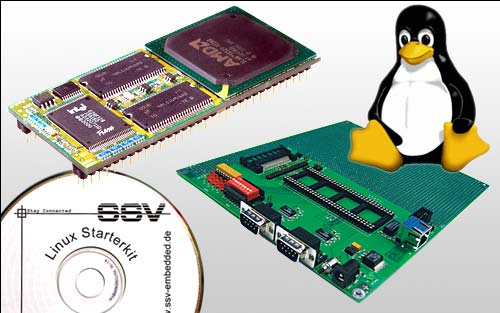

The DIL/NetPC ADNP/1520-3V starter kit SK18 is everything you need to get startet with your DIL/NetPC embedded networking application. The starter kit includes a ADNP/1520-3V module with 64 Mbyte SDRAM and 16 MByte FLASH, the evaluation board DNP/EVA7 with two 9-pin RS232 connectors for the ADNP/1520-3V UARTs and one CompactFlash (CF) socket, power supply, serial interface (nullmodem) cable, two embedded operating systems, one CD-ROM with software and documentation and a user manual for the first steps with the starter kit.


For using the DIL/NetPC ADNP/1520-3V starter kit youd need a development system. The minimal configuration for this system is a Windows-based PC with the HyperTerminal terminal emulation program and a free COM port (COM1 or COM2) for the serial link between the DIL/NetPC ADNP/1520-3V and HyperTerminal program. For using the Ethernet link, your PC needs an Ethernet adapter with 10BASE-T or 100BASE-TX LAN interface.

DIL/NetPC ADNP/1520-3V: Starter Kit Key Features

The DIL/NetPC ADNP/1520-3V starter kit CD-ROM offers two different operating systems: 1. Datalight ROM-DOS 6.22 (which is also pre-installed to the ADNP/1520-3V FLASH), 2. a Embedded Linux based on a standard x86 kernel. You will find the Linux in binary and in source code form on the CD-ROM. The binary is ready to run. Just download the binary file from the CD-ROM to the DIL/NetPC FLASH memory and then booting up the Embedded Linux. Thatīs all.

  • DIL/NetPC ADNP/1520-3V with 133 MHz. 16 MByte FLASH, 64 MByte SDRAM
  • Evaluation Board DNP/EVA7 with one CompactFlash (CF) socket
  • Nullmodem Cable
  • 110 VAC or 230 VAC to 5 VDC Power Supply
  • CD-ROM and User Manuals
  • ROM-DOS 6.22 with FLASH File System
  • Embedded Linux with Source
  • Linux Remote Login with Telnet
  • Web Server Setup Sample
  • FTP Server Setup Sample
  • Many Sourcecode Samples

DIL/NetPC ADNP/1520-3V: Starter Kit Ordering Information

Ordercode Product
DNP/SK18 Starterkit with ADNP1520-3V-133, DNP/EVA7, CD-ROM and Null-Modemcable.
