DIL/NetPC ADNP/9200: Starter Kit SK27

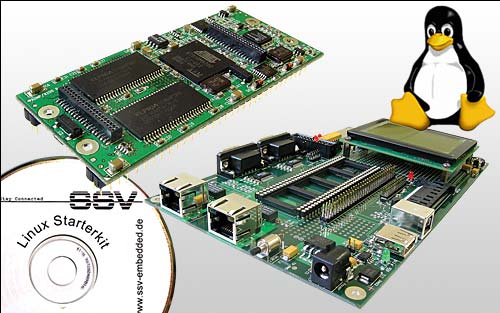

The DIL/NetPC ADNP/9200 starter kit is everything you need to get started with your AT91RM9200 ARM9-based embedded Ethernet/USB/WSN networking application. The starter kit includes an ADNP/9200 module with a pre-installed embedded Linux, the evaluation board DNP/EVA11, WSN (Wireless Sensor Network) evaluation hardware, power supply, serial interface (null-modem) cable, one CD-ROM with software and documentation and a printed user manual for the first steps with the starter kit.


The starter kit CD-ROM comes with a full GNU cross tool chain for C/C++ software development. These binary files of the tool chain run on a x86 Linux-based host (SuSE, Red Hat or other) and build ELF binary files for the AT91RM9200 ARM9 32-bit RISC microcontroller. For using the DIL/NetPC ADNP/9200 starter kit you need a development system. The minimal configuration for this system is a Windows-based PC with the HyperTerminal terminal emulation program and a free COM port (COM1 or COM2) for the serial link between the DIL/NetPC ADNP/9200 and HyperTerminal. For using an Ethernet link, your PC needs an Ethernet adapter with 10BASE-T or 10BASE-T/100BASE-TX interface. This environment allows web server Java applet programming and Linux shell script programming. For using the GNU C/C++ tool chain, it is necessary to run Linux on the development system.

DIL/NetPC ADNP/9200: Starter Kit Key Features

The DIL/NetPC ADNP/9200 pre-installed embedded Linux consists of two main components: 1. the Linux kernel and 2. the root file system. The kernel offers FLASH File System (FFS) support. This allows you to download files via FTP or TFTP direct to the ADNP/9200 FLASH memory.

  • DIL/NetPC ADNP/9200 with 180 MHz AT91RM9200 and 32 Mbytes FLASH / 64 Mbytes SDRAM, 3.3 VDC Vcc
  • U-Boot Boot Loader and Embedded Linux pre-installed in FLASH
  • Evaluation Board DNP/EVA11 with 128 x 64 Dots Graphic LCD
  • Serial Interface (null-modem) Cable
  • WSN (Wireless Sensor Network) Evaluation Hardware
  • CD-ROM with User Manual and Hardware/Programmers Manuals
  • Embedded Linux with Source
  • GNU Cross Tool Chain for C/C++ Software Development
  • Linux Remote Login with Telnet
  • Web Server Setup Sample
  • FTP Server Setup Sample
  • Many Sourcecode Samples

DIL/NetPC ADNP/9200: Starter Kit Ordering Information

Ordercode Product
DNP/SK27 Starterkit with ADNP/9200, DNP/EVA11, CD-ROM and Null-Modemcable..
