DIL/NetPC DNP/1486-3V: Starter Kit Evaluation Board DNP/EVA1

For fast DIL/NetPC system integration and a short time-to-market with DIL/NetPC- based products we offer the DNP/EVA1 Evaluation Board. In the center of this board is a standard 2.54mm 64-pin DIL socket for the DIL/NetPC. Eight bits of the DIL/NetPC 20-bit general purpose parallel I/O (PIO) signals are connected to LEDīs. Eight other bits are connected to a 8-position DIP switch. For develop the interface to other application- specific parts (i.e. A/D converters, CAN field bus and other special I/Os ), the DNP/EVA1 Evaluation Board offers a big breadboard area with holes spaced at 2.54mm (0.1") intervals.


The DNP/EVA1 Evaluation Board requires only an external 5 VDC or 6 VDC power supply to operate. During the development and testing phase of a DIL/NetPC- based application, you will usually connect the DNP/EVA1 to a serial port of your PC. Please use a standard Null- Modemcable for this connection.

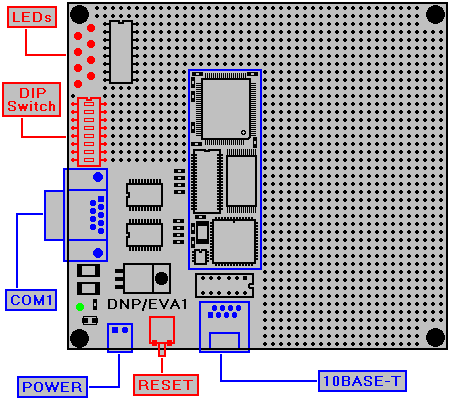

DNP/EVA1 Components
Name Function
10BASE-T RJ45 Connector. Ethernet LAN Interface.
RESET Switch for DIL/NetPC Reset.
POWER 5 or 6 VDC Input from external Power Supply.
COM1 SUB-D 9-pin Connector. COM1 RS232C Interface.
DIP Switch 8-position DIP Switch connected with DIL/NetPC Port B.
LEDs 8 LEDs connected with DIL/NetPC Port A.

DIL/NetPC DNP/1486-3V: Starter Kit Evaluation Board DNP/EVA1 Key Features

For more information please download or view the DNP/EVA1 schematics file with the LED and DIP switch interface. This schematics also contains a 3.3 VDC power supply for the DIL/NetPC DNP/1486-3V, the Ethernet 10BASE-T local area network (LAN) interface with the RJ45 connector and the RS232C level shifter.

  • 2.54mm 64-pin JEDEC DIL Socket
  • 3.3 VDC Power Supply, 5 - 6 VDC Input
  • 8 LEDs on PIO Port A
  • 8-position DIP Switch on PIO Port B
  • COM1 Interface with 9-pin SUB-D
  • RS232C Level Shifter on-board
  • 10BASE-T Interface with Standard RJ45
  • 10BASE-T Transceiver on-board
  • Big Breadboard Area for Prototyping
  • RESET Switch for DIL/NetPC Reset
