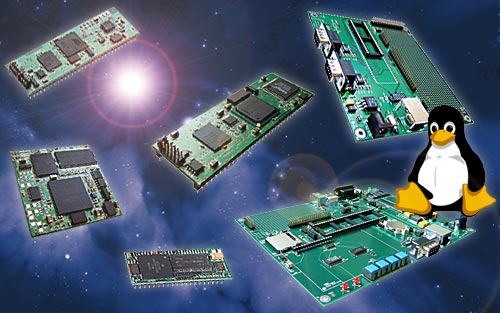

SBCs for Embedded Networking: The DIL/NetPC Family

A DIL/NetPC family member provides a very compact 32-bit low power embedded system solution with TCP/IP protocol stack, socket-based API, HTTP, FTP and Telnet server for Ethernet- (IEEE 802.3), Bluetooth- (IEEE 802.15.1), LR-WPAN (IEEE 802.15.4/ZigBee), or WLAN/Wi-Fi-based (IEEE 802.11a/b/g) embedded networking and M2M applications.

All DIL/NetPC family members offers the footprint of a standard 40-pin DIL, 64-pin DIL, 128-pin QIL or 169-pin PGA socket with 2.54mm centers and all the hardware and software features necessary to add networking capabilities to any product design. The DIL/NetPC family was developed specifically for products that need to be connected to Ethernet-based networks with maximum performance and minimum development costs.

DIL/NetPC Home Page

A DIL/NetPC family member is a ready-to-run programmable embedded networking system. The use of DIL/NetPCs will allow you to realize a substantial time and costs savings over other chip-based approaches. Currently, there is no other more flexible Ethernet- and TCP/IP-based embedded networking solution with more development time savings on the market. There is also no faster Time-to-Market for your product with lower costs if Ethernet, TCP/IP and a embedded web server with real CGI, SSI and many other features is required.

DIL/NetPCs Common Features

  • 32-bit Low Power CISC or RISC CPU with up to 600 MHz
  • Up to 64 MByte SDRAM Memory
  • Up to 1 GByte NOR/NAND FLASH Memory with Boot Block
  • One or two 10/100 Mbps Ethernet Interfaces
  • One or two UART-based serial Ports with TTL Levels
  • 18- or 20-Bit General Purpose Parallel I/O (PIO)
  • Software/Hardware CAN, I2S, SPI, TWI and I2C Support
  • Extension Bus with Interrupts and Chip Selects
  • Programmable Watchdog Timer
  • JTAG IEEE 1149.1 Boundary Scan Test Interface
  • In-System Programmable over JTAG, serial and Ethernet Interface
  • 40-pin and 64-pin JEDEC DIL, 128-pin QIL, or 169-pin PGA Connectors with 2.54mm Centers
  • 3.3 Volt Low Power Design
  • Size 55*23 mm (DIL-40), 82*28mm (DIL-64), 82*33mm/36mm (QIL-128) or 45*45mm (PGA-169)
  • Pre-installed Embedded Linux with full-featured TCP/IP and FTP/HTTP/Telnet/SSH Servers
  • eCos or Microsoft Windows CE O/S option for some DIL/NetPCs
